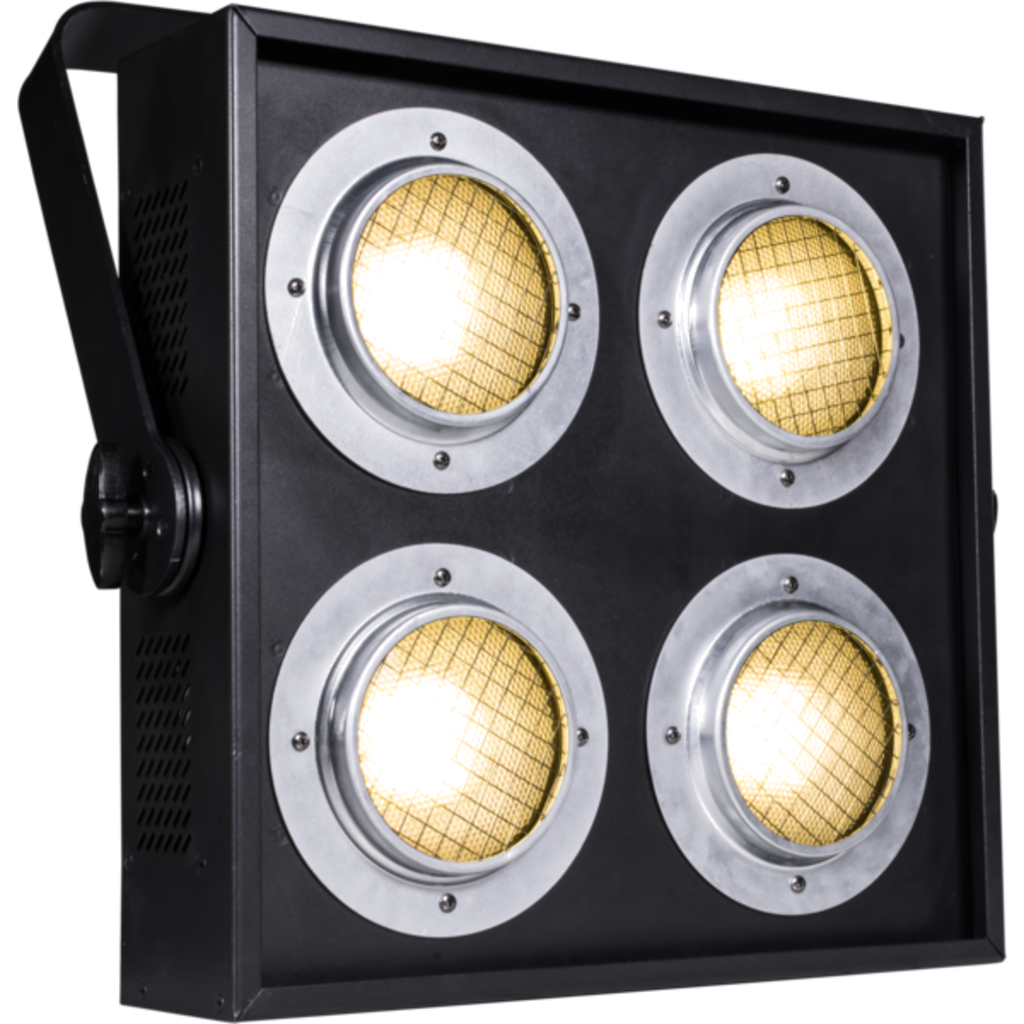

SUNRISE4 is the first blinder with LED source which equals the brightness of conventional projectors based on the DWE 4x650 W halogen lamps. It's equipped with 4x100 W COB LED 3.200 K and an optical glass that is able to reproduce the projection angle, colour temperature, dimmer ramp and brightness of a fluorescent bulb. The electronic SUNRISE4 also offers many other key points such as the option to control each LED independently in pixel2pixel and the user can take advantage of a dedicated channel for the strobe in addition to the selection of different dimmer curves.
Features:
4x100 W COB LED 3.200 K
Outstanding brightness of 18'340 lm, achieve the brightness of classic DWE blinders
CRI > 80
Pixel control: individual control of each single LED with a selection of dimmer fade
No need for dimmers or lamp replacements, LED lifespan > 50.000 h
LIGHT SOURCE
Source: 4x100W White COB LEDs
CCT: 3.200K
CRI: > 80
Luminous flux: 18'340lm
Lux: 2'550lx @3 m
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 50°
Field angle: 80°
Lens type: HD anti-reflection lenses with achromatic coating
DYNAMIC EFFECTS
Pixel patterns: pre-programmed dynamic and static patterns
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy aluminum profile
Body colour: black
CONTROL
Protocols: DMX512
DMX channels: 4 / 6 / 9channel
Pixel control: pixel2pixel control
Display: black OLED high resolution display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 360W
Power consumption (at 120 V): 363W
Output (at 230 V): 6 units on a single power line
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: hanging bracket suitable for safe hanging and positioning
Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
IP rating: 30
Dimensions (WxHxD): 466x454x128mm
Weight: 11,4kg
