NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER_x000D_

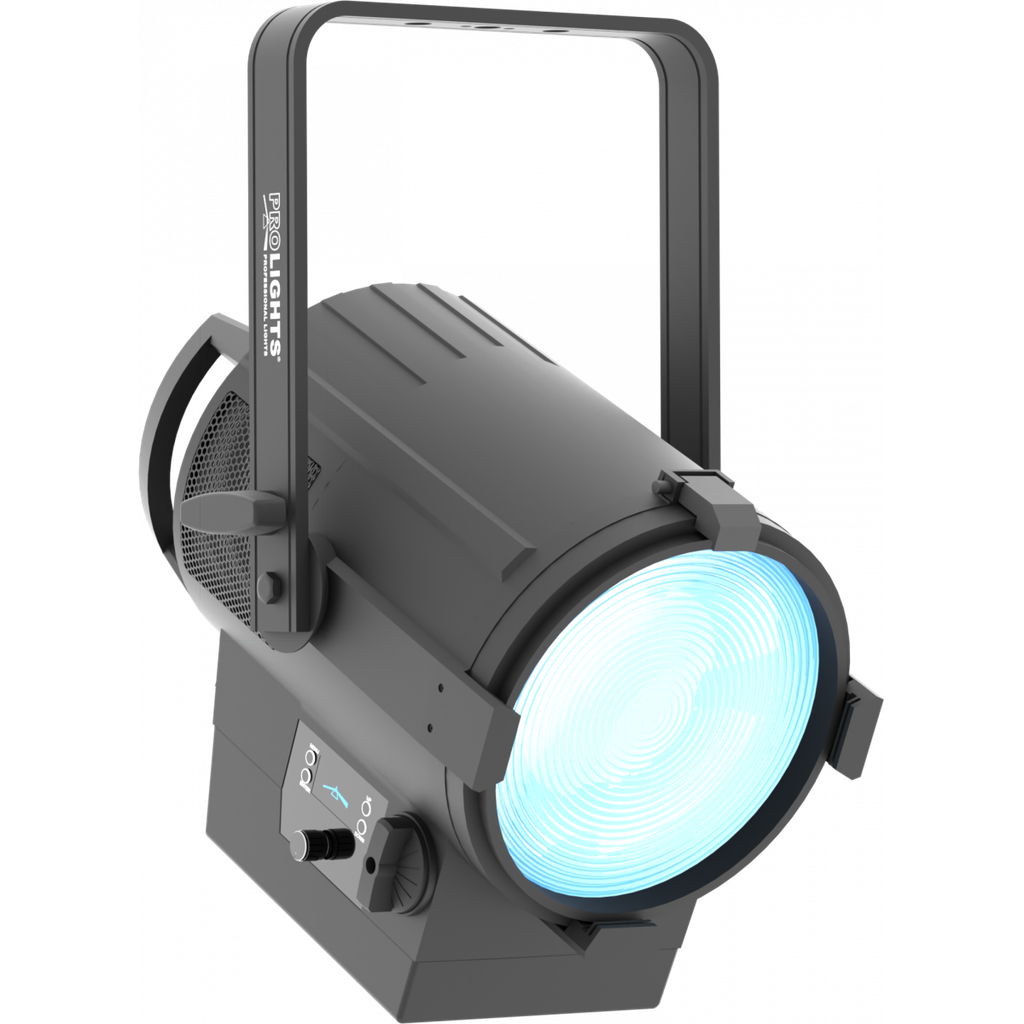

EclFresnel is the LED replacement for a standard tungsten 1.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a powerful source that focuses on outstanding colour rendition. The EclFresnel adds all the advantages of LED to the Fresnel.
Features:
TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
Fresnel lens with 17° to 42° zoom range
Silent operation for studio and stage use
LIGHT SOURCE
• Source: 230W high-power white LED
• CCT: (TU) 3.200 K - (DY) 5.600K
• Luminous flux: (TU) (17°) 10'842 lm (42°) 13'320lm @full
• Luminous flux: (DY) (17°) 12'546 lm (42°) 15'623 lm @full
• Lux: (TU) (17°) 3'728 lx - (42°) 1'019lx @5 m full
• Lux: (DY) (17°) 4'260 lx - (42°) 1'182lx @5 m full
• CRI: (TU) >98 - (DY) >95
• R9: (TU) >90 - (DY) >90
• TLCI: (TU) >98; (DY) >95
• TM30 Rf: (TU) >92; (DY) >89
• TM30 Rg: (TU) >99; (DY) >98
• Source life expectancy: > 50.000 h
OPTICS
• Zoom: 17° - 42° half peak angle
• Lens diameter: 8'' - 200mm
• Lens type: fresnel zoom lens
• Other: barndoor and gel frame included
COLOUR SYSTEM
• Colour mixing: white
DYNAMIC EFFECTS
• Static colour mode: selection of static dimmer
• Manual colour mode: manual adjust of dimmer throught menu and knob
• Auto mode: built-in programs with execution speed adjustment
BODY
• Hardware on-board: included filter frame, 8 doors barndoor, spigot
• Pan angle: (for pole operated version) 360° with manual regulation
• Tilt angle: (for pole operated version) 340° with manual regulation
• Body: sturdy die-cast aluminium body
• Body colour: black, white finishing available
• Other: Spigot 28 mm
CONTROL
• Protocols: DMX512, RDM, rotatory knob
• DMX channels: ch1: 1 / 2 - ch2: 2 / 3 / 5channel
• RDM: RDM ready for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• Master/Slave: for synchronised operation of more units linked in a chain
• Other: 16bit control of dimmer
ELECTRONICS
• Dimmer: linear 0 ~ 100%, manual knob dimmer
• Dimmer curves: selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 210W
• Output (at 230V): 10 units on a single power line
• Power factor: 0,95
PHYSICAL
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 283x440x343mm
• Weight: 7,5 kg - (for pole operated version) 9,7kg
BOX CONTENT
• 1 x ECLFRESNEL
• 1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
• 1 x ECLFRSPG
• 1 x ECLFRSBD
• 1 x ECLFRSTPG
• User Manual
